 June 6, 2025

# Canvas 4.3.1 Release

![Picture of CIMON](https://blog.cimon.com/hs-fs/hubfs/Email%20Signature/CIMON%2025th%20Anniversary_Email%20Signature.png?width=50&name=CIMON%2025th%20Anniversary_Email%20Signature.png) By  [CIMON](https://blog.cimon.com/author/cimon)  ·   3 minute read

![Canvas-4-3-1_Release-Banner](https://blog.cimon.com/hs-fs/hubfs/Canvas-4-3-1_Release-Banner.jpg?width=800&height=450&name=Canvas-4-3-1_Release-Banner.jpg)

Canvas 4.3.1 introduces new features, objects, scripts, and a redesigned user interface.

The changes and improvements to Canvas make project creation and maintenance easier for new and experienced users.



**Notable Additions**

---

- **Data Bridge**

  Utilize your Xpanel as a data bridge between two devices. If one device cannot communicate directly with another, the Xpanel will serve as a middleman to bridge data communication.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXe_9FKXNPu5qvrldbl7MvSTsoKzK9M7H_mpR0PvFDhhMPs0ZA-AMXRvBbMdQ1AfJL1AvZCUwuf1SjpwiF2JhJ9JAFQdturWY5ISTma5KN4F-eyQ-ca6VEaQvhJwnJYuUc7Voa137w?key=tghS5IT11GYcguy0jnZAXUBs)

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXcJFNqxQhNZ5rsX7tG32-h0AqQlVVTlfOe9Lw1qRueBFSgyTOtt5rdoVZ1nH5Z9Vwcyb_yOeM2jXdfBDsDOQFfCsSfNumW4jXtZx85aIg-7kgDHjyEU95fJG0f3GkMfs3yvAs7P2w?key=tghS5IT11GYcguy0jnZAXUBs)



- **EDS File Export**

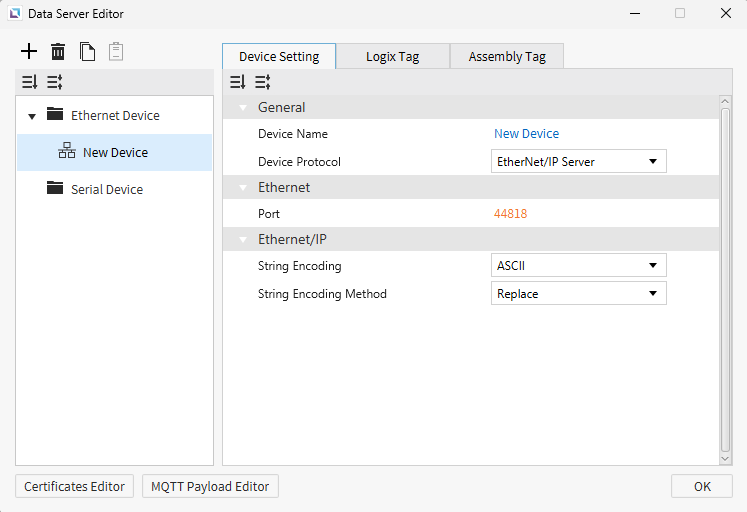

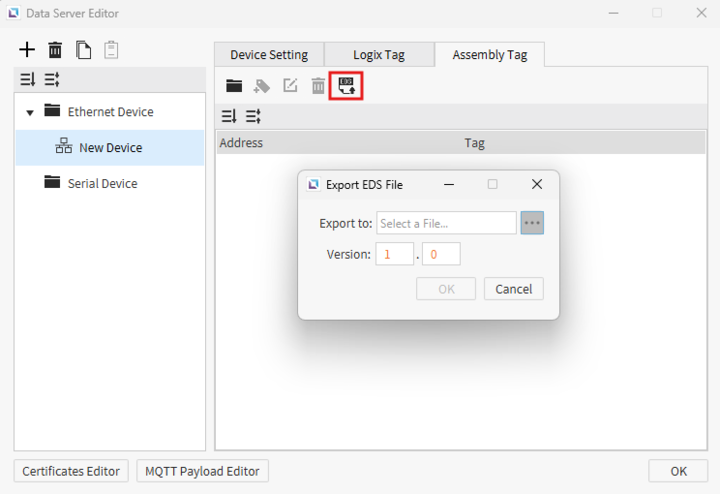

  You can now export explicit connections from an EtherNet/IP server directly to an EDS file, making it easier to share and configure device communication settings across platforms.

  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXexrSRbbjPjiGwO1GGha9TCb9FMeT9uYVwPtk5Qp_dcT84sDhEF72QwTm46SvVROU63G0rnT7uKacdEPjGczA3SGzWZ0hKIl_21dbDUufiILpH_k5IhOltrR52LIA0W8_YckiNj?key=tghS5IT11GYcguy0jnZAXUBs)
  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXck7DkqI47HBAOeLL4SFMzw5x5fFFWABFKyJDe8Zjwbxnu7E0d5WJrtLQaDsUJ1UXOEG6X6aB9_rjz9jvTiw3XycZ-eTDwTfpHP8eCBb8DhDZDDHbYDURTZEA46st5PgDLt7F6K?key=tghS5IT11GYcguy0jnZAXUBs)
- **Object View**

  Canvas 4.3.1 added the Object View pane. This pane displays all objects on the currently opened page.

  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdSyc2YCrhWvAEoOcRzMn1bNg0KL0KkzPHNzQpu5c8VFjM4xzoqPgE5-ssLnhTo7i_SB0G9pMpya16FXIsobD-8TXiEJuKhXxHi5gzsks6s7HU47X_BUc8F6_BRAHtUnA9I6Ll0?key=tghS5IT11GYcguy0jnZAXUBs)



- **Toggle Button**

  Canvas 4.3.1 introduces a new button: the Toggle Button. This button toggles a tag value between the active and inactive states.



![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdztemNwVB1ln4pcEzihj_cEZQkCICeIf2XbT2XgJ3RvZytf8Xfi-i4HAB5MF9dFN_PwwqZIv9nxNp6Z6uxL08S_9TqNTJmTZ1wa8Rgr0J7HbES6ZGpN0z0NR_0UTNu5WeZG2hjkg?key=tghS5IT11GYcguy0jnZAXUBs)

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXd3MSHwEWCKucGYtkzBwJsDUA1gvXTzDVS7U_KjJPNkt25tgESwO8j5elrbJqgTYsZhSr74UFxB_Jt8wK3Fj_5wg6Uvs6-AkGbZQv4BiW7gQY8wHPI-LMltq_6GK_AhyCThFlN9?key=tghS5IT11GYcguy0jnZAXUBs)

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXcBHN6wm2_knB2BQEnRoBSe7FAzruI56GjJ7qFOjCmhrykNmxcEJum9QQGeXJNlWhKEPmZPfhIJD6NXt6XPgKFmGFr0u9FF-KnIHo3nCrZ1F2-1T8BZ2An9segjFJ1jGuu6vDo?key=tghS5IT11GYcguy0jnZAXUBs)



- **ComboBox**

  Another new feature in Canvas 4.3.1 is the ComboBox. The ComboBox object allows you to set and choose a variety of options. The selected option is tracked using an index value, which can be bound to a tag.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdxf2ZSQjdV9DggDtoBrvB62pHrz0n_RB2TmkiycApO8qW2Cs1hoc_HpyFRN56MemmgmniS_6JKaTi9u2bpkQ8TQpgmqAM8ZsudZczh5K8kd-Aeq0vo9FpJnqTVfGdJQ5zCKd6V?key=tghS5IT11GYcguy0jnZAXUBs)

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXeplvwMjE1qyZ6gNndmHg_f-vFZqy7EJKCAWMaxwTnDvmtsThrMeO3gkfla9CVRDwKdgS5U3aKrwcN5t3ifEDmfaDLAkzgfv7t8KTjoGjzeI_qEvQTjJFNysKj0Jl4N70XutcTsNA?key=tghS5IT11GYcguy0jnZAXUBs)

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXeIbwF8-OyHpN29CW7A2RaK539r7aCO-fOzl7KP0ryLEX341m0OH4DH8jahjdgcCdbtYo3vq6e_2l_kk4xCWtnTWse1AOTESal7VDuQSLdet68C6InhTu0WSa0J_I0UOl3Y9NyQUQ?key=tghS5IT11GYcguy0jnZAXUBs)





- **Radio Button Group**

  An alternative to the ComboBox is the Radio Button Group. This object inserts the different options with a radio button next to them. The index value can be tracked with a tag to see what option is selected.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdFWUtNhB0F1K_f4hqmgzbBVZiMmTh2oLTIjiianS_e0M_Vt75u0easA7Bwj58aXTtX_toHTvYKZXu_kRLZiuk--NwTaySd_b21GsjVG8ySKO9lC_DefwwhERjkSVi3ngPFdMjr1w?key=tghS5IT11GYcguy0jnZAXUBs)

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXfk1JtpPBCvA4jrU7pFq-rXVISTZ_atqPbIqBLxvohxGfe2kysmK6yGfhjcG9O3THUa0otPafB0Pz7jDrvtmE9fwXf_1J7vJLI51v23odgtiktt_JJXcYBShcarJjhwE8UhbhzQ8w?key=tghS5IT11GYcguy0jnZAXUBs)

- **Standard and Advanced Views and Information Icon**

  The Properties pane includes a standard and advanced view. Standard view displays minimal, but important, object properties. Advanced view displays all object properties.

  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXezmo4rBB26oO76jEIyvLXB4ZAlZLdajHdmUHCGQn4OCzh2ZSGFEf_PC_LtN7MsCUy_7rvdy0c4F30qpyBygjDBQirrtlby0WKtVEV2c2hPBNbdWg5bLNUWLIqrB6akWEk5XyUOTw?key=tghS5IT11GYcguy0jnZAXUBs)

  The Properties pane also includes an information icon. When enabled, clicking on a property displays more information about its use.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXfHWKfP148nkWzLBunriJm3Fe7ZMg9hXZQJ0Pac-7hK2dUd2NGLa8R9Cht3r8lj1oQEoIjBmDDEnXvJ2ReuhoYggGBjRshH-zaP9rYzabZe709RkE3FQdqKCiX6-6qm0bpLvQH-2w?key=tghS5IT11GYcguy0jnZAXUBs)





- **New Scripts**

  Canvas 4.3.1 introduces new scripts to be used in the Script Editor. These scripts are compatible with JavaScript ES5–the scripting language used in the Script Editor.
    - system.display.brightness()
      Returns a double value between 0 and 1 representing the Xpanel’s brightness level.
    - system.display.dimDelay()
      Returns an int value, in minutes, representing the Xpanel’s dim delay time.
    - system.display.isDimmerEnabled()
      Returns a boolean value if the dimmer setting on the Xpanel is enabled.
    - system.display.setBrightness(float brightness)
      Sets the brightness level of the Xpanel’s screen.
    - system.display.setDimDelay(int minutes)
      Sets the number of minutes before the Xpanel’s screen dims.
    - system.display.setDimEnabled(boolean enabled)
      Enables or disables the Xpanel’s screen from dimming.
    - system.ftp.download(Object config, Storage type, String sourcePath, String targetPath)
      Returns a boolean value if downloading the config from the FTP server was successful.
    - system.ftp.upload(Object config, Storage type, String sourcePath, String targetPath)
      Returns a boolean value if uploading the config to the FTP server was successful.
    - system.staticBeep(boolean enable)
      Plays a beeping sound from the built-in Xpanel buzzer.
    - tag.writeBatch(Array tagNames, Array tagValues)
      Writes values to multiple tags at the same time.

- **New Protocols, Driver Support, and Tag Importing**

  Canvas 4.3.1 introduces new protocols, drivers, and other vendor tag importing. These features allow for a wider range of communication with your favorite devices.
    - BACnet/IP (Ethernet client)
      Canvas 4.3.1 now supports BACnet/IP, enabling seamless integration with a broader range of building automation and control devices. This addition makes Canvas more versatile and valuable for users managing smart building systems and complex device networks.
  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXcL0UIZic9zsdc6wx9OVT4eqYvrAa-P4aWO90voJqlcHD9GA2KG_zd5jYYaXdWrOzJ2PUzeVVmVkiUNG-e-O3rkDfzVDELrV_c_CNxuvXVodXhkWe9vB7KwoGk1JHcMPzu8vZaZug?key=tghS5IT11GYcguy0jnZAXUBs)

    - Siemens LOGO! Support
      It is now possible to connect and communicate with Siemens LOGO! 0BA2 PLC series with the S7 protocol. Canvas also supports the “F” and “C” memory areas.
  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXfYtUSDUW-buAnoLoWjEjSmuqpbKn4eZ-yIAvx1F6eqkfra5CpyUO262oAlAG3fcvOG6QEvjjIeFb5LMSXeEKIKJnXUXC4pgr51bNRwFX1BH_jhyWWAimlbsCl00I9C2Y73_djE9w?key=tghS5IT11GYcguy0jnZAXUBs)
    - Tag Importing
      The powerful tag importing feature just got a lot more versatile. Canvas 4.3.1 now supports tag importing for Siemens devices using .db and .sdf files. Additionally, EDS files from EtherNet/IP (ODVA) clients are also supported with the tag import feature.

      ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXfV3yECJpFsJet5TAt1ttBqtKdVukyseOFaxPmTh27CtqR4cmZTbR6RStVCafl-RVFeqONBT72jS0hHkI60CMMk6O2ChSw5hW8Bn7mdqU0xF_QItMOoHMxMTIIlqQYNamBk4bbczg?key=tghS5IT11GYcguy0jnZAXUBs)





**Redesigned Features**

---

- **Properties View**

  The object properties view has been redesigned to include a standard and advanced view. These options help reduce clutter for new users and organize advanced features for experienced users.

  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdlVxgNbc8NjVzum_qSc_hoblS80uFI9QuHIxv7Lx2Xm1dYo5VwVlsvPagzZGqyQDh4ku12bLtbm4_sSRjHQYMfxjAzubjWdwL3p1GeK0Ni7QPtL95mgS_YTr-vxJ2o3emU0ECy2w?key=tghS5IT11GYcguy0jnZAXUBs)
  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXc4HuxVqkhoww8FwkWTHqPPSRwjAhvHKDXalW2rtNWqCq0WO-cKbktEt3Lc4tu4i7RSnp5kqTLBMlISrWEpKjFEAev73rLMSL3SslocK17qvCH4tpryKDFyIhqLD_I3cZOz6KM1RQ?key=tghS5IT11GYcguy0jnZAXUBs)
- **Anchors**

  The size and rotational object anchors have been redesigned to simplify functionality. To toggle between the size and rotation anchors, click the object.

  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdj9A0tIAcd4AyDkXLQv-S6J9ydeTKJzg1daKQeRy1WyG16rPp141extGZ6whs1mImSz0fiT4AyUIW1HnoER3ISC4qanoZlTzhuVm8n2PxagcUKnPQAsii8Da0iI0CnJ8WOAq8yMQ?key=tghS5IT11GYcguy0jnZAXUBs)
  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXfivOE6YQYB8L6EUqD9a8XSyr5Hu2ud6PeLzw1vJbBa5jGgyx1X_UcRv05vPV3g24w54G0yqqdQz4MitY795RP2WyAu5ChFrvhrq2-Nh4m2sXzXwuMKH3_LRRQfY8IjwE2Nhkjj1w?key=tghS5IT11GYcguy0jnZAXUBs)
- **Project Tree**

  The redesigned Project Tree pane includes options for opening the various Canvas editors. This lets you quickly access and edit existing functions such as alarms, recipes, scripts, etc.

  ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXfeD3IaPefrDdkQ-St2MA8FC0Oacp3oS5HgzET5MyNOQl5vwMze1mPNc0voOAnzY4hZUoj3YJ0CX0fOvwvt9dVClAcAHJYfituScqgFufDbVG14TE31qKTvxKvAgDpj6LjdpwNM?key=tghS5IT11GYcguy0jnZAXUBs)
- **Command Editor**

  The Command Editor has experienced a massive overhaul. The new design is much more intuitive and easier to navigate. Each command includes a description of its use and a scripting example.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXd2rbuAiHEzPSvC1rWwiU7GM4TOj6YX7f3KhNcPlMzrGer_MveHYFLw2o8_5WDn5HkL2Z2bCvzUGEwaBff-6noG2l5zuCWih4RWlBJb2prYH52TK2Xjir6nE3t-ScLXNVc1mM06gw?key=tghS5IT11GYcguy0jnZAXUBs)





Changelog

---

Please check out the [changelog](https://www.cimon.com/archives/canvas-4-3-1) to see all the named changes.



Installing & Updating

---

If you want to install or update to Canvas 4.3.1, please visit the [download Canvas page](https://www.cimon.com/archives/canvas-4-3-1).



Questions?

---

We'd love to hear your thoughts! If you have any questions about the release, please contact us at [support@cimoninc.com](mailto:support@cimoninc.com).
